Heavy Duty SINOTRUK HOWO Dump Truck With 6*4 Drive Wheel 350hp Euro 2

Product Categories
Shandong Global Heavy Truck Import&Export Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Heavy Duty SINOTRUK HOWO Dump Truck With 6*4 Drive Wheel 350hp Euro 2

  • 1
  • 2
  • 3

Brand Name : SINOTRUK HOWO

Model Number : ZZ3257N3847B

Certification : ISO/CCC

Place of Origin : China

MOQ : 1 Piece

Price : Nagotiation

Payment Terms : L/C, T/T

Supply Ability : 500+pieces+month

Delivery Time : 30-45 work days

Packaging Details : Nude

Drive Wheel : 6*4

Horsepower : 251-350hp

Transmission Type : Manual

Fuel Type : Diesel

Capacity(Load) : 51-60t

Engine Capacity : >8L

Emission Standard : Euro 2

Contact Now

Dump Truck SINOTRUK HOWO With 6*4 Drive Wheel 350hp Euro 2 For Heavy Duty​

Product Description

  1. Comfort: Sinotruk Howo brand cab, the design is more fashion and beautiful, make the driver more comfortable when driving.
  2. Security: Imbedding in one time makes the main beam stronger. High strength makes it more safe and reliable.
  3. Effective: Save more oil, attendance is high. And the mixing volume of tank is hug.
  4. With the huge horse power engine, can be adapted into all kinds of construction field.

The product main configuration

Driving type 6x4

Cabin

HOWO 7 standard cab (no sleeper); 4-point air suspension and shock absorption;

new style high back seat; Germany tech. VDO dash board; radio with USB;

4 way adjustable wheel; 4th generation air conditioner with LED light; sun visor;

electronic controlled window/door.
Engine Model WD615.69
Feature

Diesel, 4-stroke direct injection,

6 cylinder in line, inter cooling,

turbo-charging.
Bore stroke (mm) 126x130
Displacement (L) 9.726
Power 336hp/247kw
Rated speed (rpm) 2200
Torque (N.m) 1350
Emission Euro 2
Gearbox Model HW19710 double middle axle
Shift mode Manual 10 forward 2 reverse
Torque (N.m) 1900
Rated speed (rpm) 2600
First shift ratio 14.284

Axle

 Front

9ton HR9

steering axle with disc brake
Rear

16ton

double reduction constructing axle

Dump body

 Dimension (mm) 5800x2300x1500
Thickness (mm)

Bottom: 8

Front: 6

Side: 4

Cubage (m³) Approx 20
Lifting system HYVA hydraulic front lifting HW50 PTO
Steering ZF 8118 Left hand drive
Tyre 12.00R20 radial tyre 10+1 spare
Clutch 430 Diaphragm type, single dry frictional disc, hydraulic boosting
Fuel tank 300L aluminum alloy
Overall Dimension (LxWxH) 8614x2496x3170
Wheel base (mm) 3825+1350
Curb weight (kg) 12250
Front overhang/Rear overhang (mm) 1500/1939
Approach angle/Departure angle (°) 19/13
Max speed (km/h) 75

Product Advantage

1 Powerful ability
2 Famous brand engine
3 Long history SINOTRUK HOWO 6*4 Tipper Truck Dump Truck

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Heavy Duty SINOTRUK HOWO Dump Truck With 6*4 Drive Wheel 350hp Euro 2

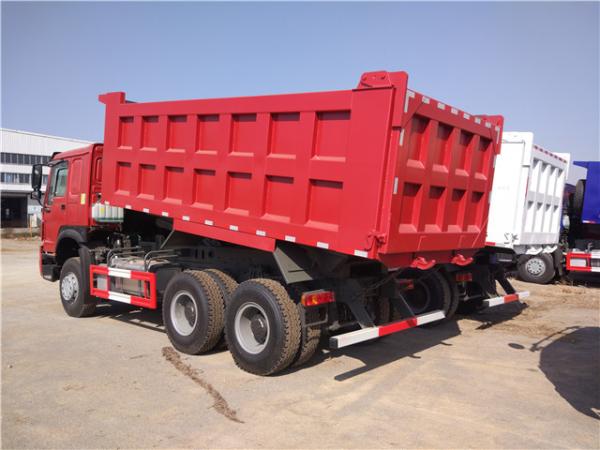

Product pictures

Heavy Duty SINOTRUK HOWO Dump Truck With 6*4 Drive Wheel 350hp Euro 2Heavy Duty SINOTRUK HOWO Dump Truck With 6*4 Drive Wheel 350hp Euro 2Heavy Duty SINOTRUK HOWO Dump Truck With 6*4 Drive Wheel 350hp Euro 2
