SINOTRUK HOWO 10 Wheels Mining King Dump Truck 371HP Euro 2 Optional Color
Product Description
HOWO 70 Mining Dump Truck is heavy concentrated engineering design personnel and development, first and foremost applies to all kinds of open pit coal mine, steel mills, hydropower construction, dock, poor road conditions, homework is in bad situations in areas within a short distance transport business development of this car, in terms of the particular user groups, with high economic benefit and social benefit.
| SINOTRUK HOWO Mining King Dump Truck |
| Chassis Model | ZZ5707S3841AJ |
| Driving Type | Left Hand Driving/Right Hand Driving |
| Production Year | Brand New truck. |
| Cabin | HW7D cab, without sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine Model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L |
| Transmission | HW21710, 10F & 2R, with PTO |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assitance |
| Front Axle | HF12, 1x12000 KGS Steering with doubleT-cross section beam |
| Rear Axle | AC26, 2x26000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 10.47 |
| Chassis | Front suspension: 1500mm, Half the elliptical leaf spring with shock absorber cavitation Rear suspension: 1000mm, The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt |
| Brake | Service brake: Dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 7.5Kw/24V Alternator: 28V-1500kw Batteries: 2X12V/165Ah |
| Tires | 14.00-25, bias tire with one spare tire |
| Fuel Tank | 500 L |
| Cargo Body | 5800*3100*1700 mm, 30.56 CBM, Floor 12 mm and side 10 mm, HYVA front side lifting |
| Overall Dimension | 9045*3200*3770 mm |
Competitive Advantage
1) all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
2) using the high strength steel, make it has a long service life
3) The front lifting type domestic advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4) excellant apperance of cabin, safety, reliable
5) low fuel consumption
6) strong enough engine
7) with all kinds of truck model, which can fulfil your requirements
8) the key parts adopt the world's top technology products
9) based on strong technical support and top level technology make the trucks with high quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency

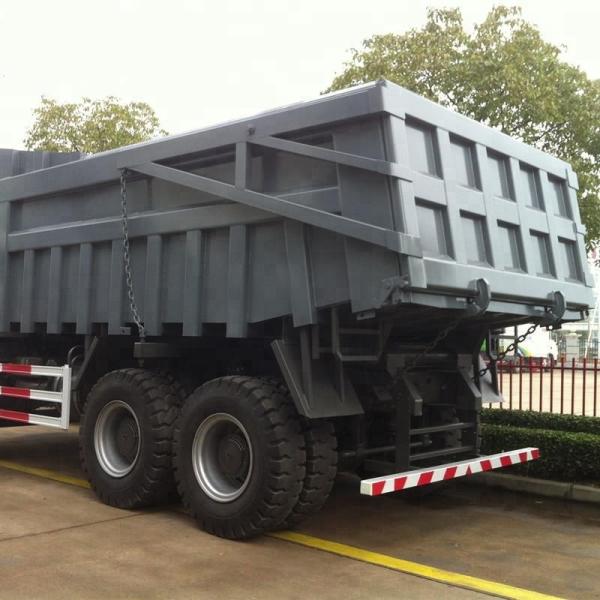

Product picture
